POE-IR24W-60M

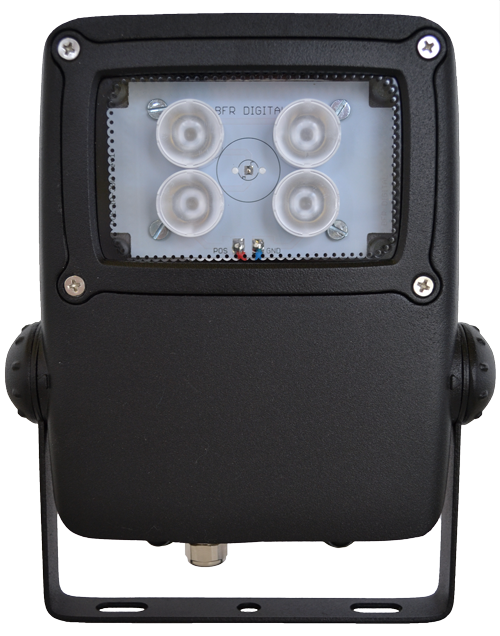

INVIZ 100m PoE powered IR LED illuminator, 850nm.

POE-IR24W-100M

The INVIZ range features the highest output infrared LEDs available today, combined with quality high-performance lenses the INVIZ range of infrared illuminators outperforms all other illuminators in its class. Operation of the INVIZ infrared illuminator is via the internal day/night switch or contact input. The high-performance internal POE power supply drives the infrared LEDs at constant current guaranteeing zero camera flicker and a well-illuminated camera video image.

Product Part Code: POE-IR24W-100M
Product Description: 100m PoE powered IR LED illuminator, 850nm
Technical Specifications:
Optical:
Total radiant flux: 8000 mW
Radiant Intensity: 3120 mW/sr
Typ. Viewing angle: 32 to 20 degrees
Peak wavelength: 860 nm
Centroid wavelength: 850 nm
Maximum distance: 100 m
LEDs: 4
Interface:
Standard: IEEE802.3at
Classification: 2-Event Classification Recognition
Class: 4
Power consumption: 25 Watt
Protection: Under-voltage and Overvoltage Lockout
  Comprehensive Thermal Protection
Typ. operating voltage: 48V
Maximum operating voltage: 60V
Turn-On voltage: 37.5V
Over-voltage lockout: 70V
Under-voltage lockout: 30V
Modes of operation:
Automatic: Internal Day/Night sensor
Manual: Aux. Contact
General:
Enclosure rating: IP66
Enclosure material: Aluminium
Operating temperature: -20°C to 75°C
Dimensions (mm): 164 x 199 x 38
  *** Product specifications are subject to change without notice
