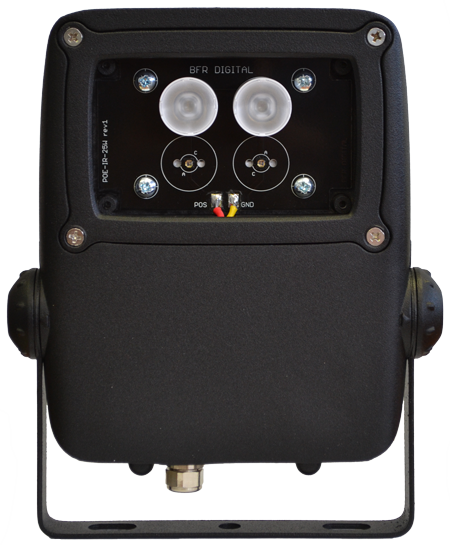

POE-IR24W-60M

60m PoE powered IR LED illuminator

Product Features

  • High-Powered Infra-Red
  • Up to 60m illumination distance
  • IEEE802.3at compliant
  • Under-voltage and Over-voltage Lockout
  • Automatic or Manual operation
  • Built-in Day/Night Sensor
  • 2-Event PoE Classification Recognition
  • 1 year warranty (requires POE surge arrester)

    • OSRAM_LED_Technology_Included

    POE-IR24W-60M
    pfd



              Download PDF
    Technical Specifications:
    PoE IR illuminator: POE-IR24W-60M
    Product Description: 60m PoE powered Infra-Red LED illuminator
    Optical:
    Total radiant flux: 8000 mW
    Radiant Intensity: 3120 mW/sr
    Typ. Viewing angle: 90 to 32 degrees
    Peak wavelength: 860 nm
    Centroid wavelength: 850 nm
    Maximum distance: 60 meters
    LEDs: 4
    Interface:
    PoE Standard: IEEE802.3at
    Classification: 2-Event Classification Recognition
    Class: 4
    Power consumption: 25 Watt
    Protection: Under-voltage and Overvoltage Lockout
      Comprehensive Thermal Protection
    Typ. operating voltage: 48V
    Maximum operating voltage: 60V
    Turn-On voltage: 37.5V
    Over-voltage lockout: 70V
    Under-voltage lockout: 30V
    Modes of operation:
    Automatic: Internal Day/Night sensor
    Manual: Aux. Contact
    General:
    Enclosure rating: IP66
    Enclosure material: Aluminium
    Operating temperature: -20°C to 75°C
    Operating humidity: 0% to 95%; non-condensing
    Dimensions (mm): 164 x 199 x 38

      * Product specifications are subject to change without notice
